Data Model

HTSQL is not a full-fledged database system. As opposed to regular data stores, it does not include a storage layer, but relies on a SQL database server to physically store and retrieve data.

HTSQL is designed to work on top of existing relational databases and does not impose any restrictions on how information is modeled and stored there. At the same time, HTSQL works best when the data in the database is highly normalized.

Even though HTSQL wraps a relational database, it does not expose the relational model directly to the users. Instead it derives HTSQL data model from the underlying database and uses this model when presenting data to the users and interpreting user queries. HTSQL data model is very close to traditional network data model utilized by CODASYL and various OODBMS and ORM systems.

In the next sections, we describe HTSQL data model and how it is inferred from the relational model of the underlying database.

Model and Instances

When describing how information is represented by HTSQL, we differentiate between a database model and a database instance.

A database model specifies the structure of the database: what types of business entities are represented and how the entities may relate to each other. A database instance is the actual data in the database and must satisfy the constraints imposed by the model. The difference between a model and an instance is the difference between the shape of data and data itself.

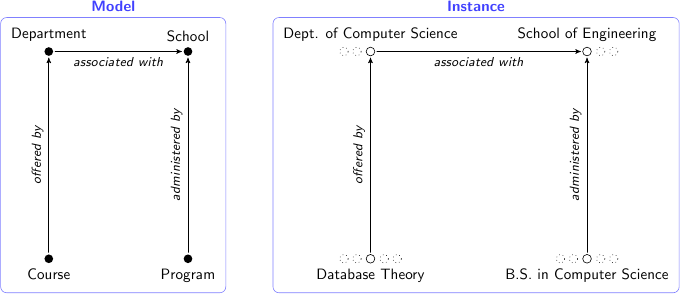

Let’s consider the model of a student enrollment system in a fictional university. This model may contain schools, programs administered by a school, departments associated with a school, and courses offered by a department. A concrete instance of this model may contain a school of Engineering with an associated department of Computer Science, which offers a Database Theory course, etc.:

Model Graph

HTSQL represents a database model as a directed graph, or a collection of nodes connected by arrows.

A model graph may contain several types of nodes:

  • A domain node represents a scalar data type such as boolean, integer, string, date.
  • A class node represents a collection of homogeneous business entities. For instance, a student enrollment database may contain classes for school, program, department, and course entities.
  • Each model graph contains one instance of a unit node. The unit serves as an origin node when we construct paths in the model graph.

Arrows in the model graph are categorized by the type of nodes they connect:

  • There is exactly one arrow connecting the unit node to each class node. We call it a class arrow. It represents the set of all entities of the target class.
  • An arrow connecting a class node to a domain node is called an attribute arrow and represents an entity attribute.
  • An arrow between two class nodes denotes a relationship between entities of the respective classes and is called a link arrow.

Each arrow has a name. The arrow name must be unique among all arrows with the same origin node.

The following diagram shows a fragment of the model graph for the student enrollment database (most of the domain nodes and attribute arrows are omitted for clarity).

A navigation in the model graph is a path, or a sequence of arrows, where the first arrow starts at the unit node and the target of each arrow coincides with the origin of the next arrow. We denote a navigation using arrow names separated by a period (.). For example, in the diagram above, the selected navigation is denoted by school.department.name.

A navigation expresses a respective HTSQL query:

Studio Art
Accounting
Economics

Note

We will routinely use the navigational notation to refer to various components of the model graph. Since there is a one-to-one correspondence between class arrows and class nodes, we can use the arrow name to refer to the target class; for example, we say “class school” referring to the target of the class arrow called school. In the same manner, we will often say “link school.department” or “attribute department.name” referring to the last component of the navigation.

Instances

As we focus from the database model to a specific instance, nodes are populated with values and entities, and each arrow splits into connections between individual node elements.

A domain node is populated with all values of the respective type. Thus, boolean domain acquires two values: true and false, integer domain is filled with all integer numbers, and so on.

A class node becomes a set of entities of the respective class; e.g. school class becomes a set of university schools, department a set of departments, etc.

The unit node contains a single value, which is called a unit and denoted by @.

Note

In HTSQL, we can only observe entity attributes, but not the entities themselves. When we need to refer to a specific entity in writing, we enclose in brackets the value of an entity attribute which uniquely identifies the entity. For example, attribute school.code uniquely identifies school entities, therefore we may say that [eng], [ns], [sc] are respectively entities representing schools of Engineering, of Natural Sciences, and of Continuing Studies.

An arrow between two nodes splits into a binary relation between elements of these nodes:

  • An arrow from the unit node to a class node connects the unit to every entity in the target class.
  • An arrow between two class nodes connects each entity of the origin class to all related entities in the target class.
  • An arrow from a class node to a domain node connects each entity with the respective attribute value.

The following diagram visualizes the navigation school.department.name on a specific database instance.

Arrow Constraints

Arrows may enforce constraints on connections between elements. We recognize the following constraints: singularity, totality and uniqueness.

Note that arrow constraints are defined on the database model and applied to all instances of the model.

Singular and Plural Arrows

An arrow is called singular if any element of the origin node is connected to no more than one element of the target node. Otherwise, the arrow is called plural.

  • All attribute arrows are singular.
  • All class arrows are plural.
  • A link arrow, which connects two class nodes, may be singular or plural. For example, link department.school is singular because each department may be associated with just one school, but the reverse link school.department is plural since a school may include more than one department.

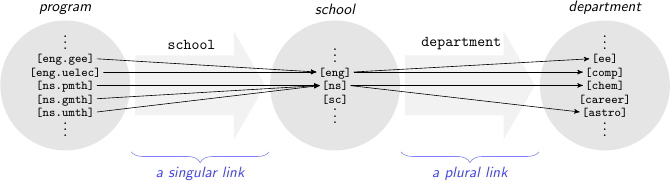

The following diagram visualises a singular link program.school and a plural link school.department.

Total and Partial Arrows

An arrow is called total if each element of the origin node is connected to at least one element of the target node. Otherwise, the arrow is called partial.

  • A class arrow is always partial. It represents the fact that in some database instances the class may contain no entities.
  • Links and attributes could be total or partial. For example, attribute school.name is total since each school must have a name, but attribute school.campus is partial since some schools do not belong to any campus.

The following diagram shows a total link program.school and a partial attribute school.campus.

Unique and Non-unique Arrows

An arrow is called unique if any element of the target node is connected to no more than one element of the origin node. Otherwise, the arrow is non-unique.

  • A class arrow is non-unique since the class may contain more than one entity.
  • Links and attributes could be unique and non-unique. For example, attribute school.name is unique since we require that each school has a distinct name, but attribute school.campus is non-unique since several schools may share the same campus.

The following diagram shows a unique attribute department.name and a non-unique link department.school.

Correspondence to the Relational Model

In this section, we explain how underlying relation database model is translated to HTSQL data model.

For the most part, translation of relational structure to HTSQL model is straightforward. SQL data types become domain nodes, SQL tables become class nodes, table columns become attributes. Links between classes are inferred from FOREIGN KEY constraints.

HTSQL allows the administrator to restrict access to specific tables and columns, configure additional database constraints, and rename links. Here we describe how HTSQL creates a database model from the given SQL database in the absence of any configuration.

A name in HTSQL is a sequence of letters, digits and _ characters which does not start with a digit. When an HTSQL name is generated from a SQL name which contains non-alphanumeric characters, those are replaced with an underscore (_).

Classes

Each SQL table induces a class node, which, in general, borrows its name from the table.

Some SQL database servers support a notion of schemas, or collections of tables. Tables in the same schema must have unique names, but two or more tables in different schemas may share the same name, in which case HTSQL cannot use the name directly. This naming conflict is resolved as follows:

  • If one of the schemas is marked as “default” for the purposes of name resolution, the name of the respective table is borrowed unadorned.
  • For the remaining tables, the assigned HTSQL name has the form <schema>_<name>.

Attributes

Each table column induces a class attribute with the same name.

When the column has a FOREIGN KEY constraint, the column name is also used to refer to the respective link. In this case, whether the name refers to an attribute or a link is determined from context; compare

and

code name campus
bus School of Business south
la School of Arts and Humanities old
ns School of Natural Sciences old

Constraints

Column constraints are trivially translated to properties of the respective attribute arrows.

  • A NOT NULL constraint on a column means, in HTSQL terms, that the respective attribute is total.
  • A UNIQUE constraint indicates that the attribute is unique.
  • A PRIMARY KEY constraint indicates that the attribute is both total and unique. The columns that form a primary key are also used for default ordering on the class.
  • A direct link induced by a FOREIGN KEY constraint is always singular. The reverse link is plural in general, but could be singular when the key column is UNIQUE.

An Example

Consider, for example, the following fragment of an SQL schema:

CREATE SCHEMA ad;

CREATE TABLE ad.school (
    code                VARCHAR(16) NOT NULL,
    name                VARCHAR(64) NOT NULL,
    campus              VARCHAR(5),
    CONSTRAINT school_pk
      PRIMARY KEY (code),
    CONSTRAINT school_name_uk
      UNIQUE (name),
    CONSTRAINT school_campus_ck
      CHECK (campus IN ('old', 'north', 'south'))
);

CREATE TABLE ad.department (
    code                VARCHAR(16) NOT NULL,
    name                VARCHAR(64) NOT NULL,
    school_code         VARCHAR(16),
    CONSTRAINT department_pk
      PRIMARY KEY (code),
    CONSTRAINT department_name_uk
      UNIQUE (name),
    CONSTRAINT department_school_fk
      FOREIGN KEY (school_code)
      REFERENCES ad.school(code)
);

CREATE TABLE ad.program (
    school_code         VARCHAR(16) NOT NULL,
    code                VARCHAR(16) NOT NULL,
    title               VARCHAR(64) NOT NULL,
    degree              CHAR(2),
    part_of_code        VARCHAR(16),
    CONSTRAINT program_pk
      PRIMARY KEY (school_code, code),
    CONSTRAINT program_title_uk
      UNIQUE (title),
    CONSTRAINT program_degree_ck
      CHECK (degree IN ('bs', 'pb', 'ma', 'ba', 'ct', 'ms', 'ph')),
    CONSTRAINT program_school_fk
      FOREIGN KEY (school_code)
      REFERENCES ad.school(code),
   CONSTRAINT program_part_of_fk
      FOREIGN KEY (school_code, part_of_code)
      REFERENCES ad.program(school_code, code)
);

CREATE TABLE ad.course (
    department_code     VARCHAR(16) NOT NULL,
    no                  INTEGER NOT NULL,
    title               VARCHAR(64) NOT NULL,
    credits             INTEGER,
    description         TEXT,
    CONSTRAINT course_pk
      PRIMARY KEY (department_code, no),
    CONSTRAINT course_title_uk
      UNIQUE (title),
    CONSTRAINT course_dept_fk
      FOREIGN KEY (department_code)
      REFERENCES ad.department(code)
);

In this schema, four tables ad.school, ad.department, ad.program, ad.course generate four classes:

code name campus
art School of Art & Design old
bus School of Business south
edu College of Education old
code name school_code
acc Accounting bus
arthis Art History la
astro Astronomy ns
school_code code title degree part_of_code
art gart Post Baccalaureate in Art History pb
art uhist Bachelor of Arts in Art History ba
art ustudio Bachelor of Arts in Studio Art ba
department_code no title credits description
acc 100 Practical Bookkeeping 2
acc 200 Introduction to Accounting 3 The initial course in the theory and practice of financial accounting. Topics emphasized include the preparation, reporting, and analysis of financial data.
acc 234 Accounting Information Systems 3 This course bridges the gap between two disciplines critical to business operations. This course of study teaches students to design and deploy information technology to improve the accounting systems of an organization.

Foreign key constraints department_school_fk, program_school_fk, course_dept_fk generate three direct and three reverse links:

A foreign key program_part_of_fk induces two self-referential links on program:
