HTSQL Tutorial

A query language for the accidental programmer

HTSQL makes accessing data as easy as browsing the web. An HTSQL processor translates web requests into relational database queries and returns the results in a form ready for display or processing. Information in a database can then be directly accessed from a browser, a mobile application, statistics tool, or a rich Internet application. Like any web resource, an HTSQL service can be secured via encryption and standard authentication mechanisms – either on your own private intranet or publicly on the Internet.

HTSQL users are data experts. They may be business users, but they can also be technical users who value data transparency and direct access. Business users can use HTSQL to quickly search the database and create reports without the help of IT. Programmers can use it as data access layer for web applications. HTSQL can be installed by DBAs to provide easy, safe database access for power users.

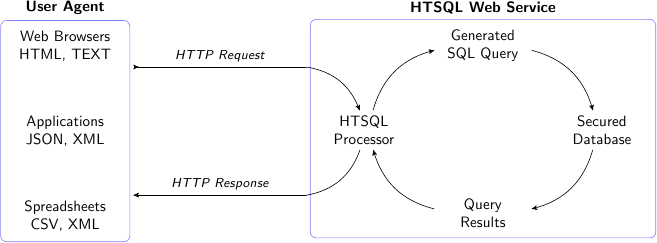

HTSQL is a schema-driven URI-to-SQL translator that takes a request over HTTP, converts it to a set of SQL queries, executes these queries in a single transaction, and returns the results in a format (CSV, HTML, JSON, etc.) requested by the user agent:

The HTSQL query processor does heavy lifting for you. Using relationships between tables as permitted links, the HTSQL processor translates graph-oriented web requests into corresponding relational queries. This translation can be especially involved for sophisticated requests having projections and aggregates. For complex cases, an equivalent hand-written SQL query is tedious to write and non-obvious without extensive training. By doing graph to relational mapping on your behalf, HTSQL permits your time to be spent exploring information instead of debugging.

The HTSQL language is easy to use. We’ve designed HTSQL to be broadly usable by semi-technical domain experts, or what we call accidental programmers. We’ve field tested the toolset with business analysts, medical researchers, statisticians, and web application developers. By using a formalized directed graph as the underpinning of the query algebra and by using a URI-inspired syntax over HTTP, we’ve obtained a careful balance between clarity and functionality.

We hope you like it.

Getting Started

The following examples show output from the HTSQL command-line system, which is plain text. HTSQL can output HTML, CSV, XML and many other formats. This makes it suitable not only for direct queries, but as a data access layer for application development.

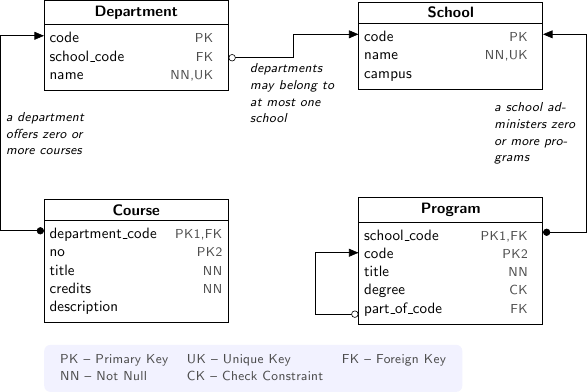

We’ll use a fictional university that maintains a database for its student enrollment system. There are four tables that describe the business units of the university and their relationship to the courses offered:

The university consists of schools, which administer one or more degree-granting programs. Departments are associated with a school and offer courses. Further on in the tutorial we will introduce other tables such as student, instructor and enrollment.

Basic Expressions

HTSQL requests start with a forward-slash /. To return all rows and columns from the school table, sorted by primary key, write:

◥
/school

code	name	campus
art	School of Art & Design	old
bus	School of Business	south
edu	College of Education	old

Hint

In this tutorial query results are shown truncated. Click on any example request to open it at demo.htsql.org and see the complete output.

Scalar expressions, including arithmetic and boolean operations, can be written directly:

◥
/(3+4)*6

42

HTSQL has many built-in functions. For instance you could use the function count() to get the number of rows in a table:

◥
/count(school)

9

HTSQL uses a regular and intuitive syntax for expressions ranging from table selection to complex calculation.

Choosing Columns

Use a selector, marked with { curley braces }, to specify more than one output column:

◥
/{count(school), count(program), count(department)}

count(school)	count(program)	count(department)
9	40	27

When returning data from a table, use a selector to choose columns for display:

◥
/program{school_code, code, title}

school_code	code	title
art	gart	Post Baccalaureate in Art History
art	uhist	Bachelor of Arts in Art History
art	ustudio	Bachelor of Arts in Studio Art
bus	gecon	Master of Arts in Economics

In addition to table attributes, you could select arbitrary expressions. The following example displays, for each school record, the school’s name and the number of associated departments:

◥
/school{name, count(department)}

name	count(department)
School of Art & Design	1
School of Business	3
College of Education	2
School of Engineering	4

To title an output column, use the :as decorator:

◥
/school{name, count(department) :as '%23 of Dept.'}

name	# of Dept.
School of Art & Design	1
School of Business	3
College of Education	2

Since HTSQL is a web query language, there are two characters that have special meaning: % is used to encode reserved and unprintable characters as hexadecimal UTF-8 octets; # represents query fragments that can be truncated by your browser. Hence, these characters must be percent-encoded in HTSQL queries: % is written %25; # is written %23. Depending upon the browser, other characters may be percent-encoded, for example, the space `` `` may show up as %20.

Linking Data

In our example schema, each program is administered by a school. Since the HTSQL processor knows about this relationship, it is possible to link data accordingly:

◥
/program{school.name, title}

name	title
School of Art & Design	Post Baccalaureate in Art History
School of Art & Design	Bachelor of Arts in Art History
School of Art & Design	Bachelor of Arts in Studio Art

It is possible to link data through several relationships. Since course is offered by a department which belongs to a school, we can write:

◥
/course{department.school.name, department.name, title}

name	name	title
School of Business	Accounting	Practical Bookkeeping
School of Business	Accounting	Introduction to Accounting
School of Business	Accounting	Accounting Information Systems
School of Business	Accounting	Financial Accounting

This request can be shortened a bit by collapsing the duplicate mention of department; the resulting request is equivalent:

◥
/course{department{school.name, name}, title}

For cases where you don’t wish to specify each column explicitly, use the wildcard * selector. The request below returns all columns from department and all columns from its correlated school:

◥
/department{*, school.*}

code	name	school_code	code	name	campus
acc	Accounting	bus	bus	School of Business	south
arthis	Art History	la	la	School of Arts and Humanities	old
astro	Astronomy	ns	ns	School of Natural Sciences	old
be	Bioengineering	eng	eng	School of Engineering	north

Since the HTSQL processor knows about relationships between tables in your relational database, linking tables in your reports is trivial.

Filtering Data

Use the filter operator ? to show only data that satisfies some criteria. For example, to return departments in the School of Engineering we can write:

◥
/department?school_code='eng'

code	name	school_code
be	Bioengineering	eng
comp	Computer Science	eng
ee	Electrical Engineering	eng
me	Mechanical Engineering	eng

This request returns all records in the department table where the column school_code is equal to 'eng'. In HTSQL, literal values are single quoted so that 'eng' isn’t confused with a column name.

For a case-insensitive substring match, use the ~ operator:

◥
/program?title~'lit'

school_code	code	title	degree	part_of_code
edu	glited	Master of Arts in Literacy Education	ma
la	upolisci	Bachelor of Arts in Political Science	ba

Often times we want to compare a column against values from a list. The next example returns rows from the program table for the “Bachelors of Arts” ('ba') or “Bachelors of Science” ('bs') degrees:

◥
/program?degree={'ba','bs'}

school_code	code	title	degree	part_of_code
art	uhist	Bachelor of Arts in Art History	ba
art	ustudio	Bachelor of Arts in Studio Art	ba
bus	uacct	B.S. in Accounting	bs

Complex filters can be created using boolean connectors, such as the conjunction (&), alternation (|), and negation (!) operators. The following request returns programs in the “School of Business” that do not grant a “Bachelor of Science” degree:

◥
/program?school.code='bus'&degree!='bs'

school_code	code	title	degree	part_of_code
bus	gecon	Master of Arts in Economics	ma
bus	pacc	Graduate Certificate in Accounting	ct
bus	pbusad	Certificate in Business Administration	ct

Filters can be combined with selectors and links. The following request returns courses, listing only department number and title, having less than 3 credits in the “School of Natural Science”:

◥
/course{department_code, no, title} ?credits<3&department.school.code='ns'

department_code	no	title
astro	106	General Astronomy I Lab
astro	211	General Astronomy II Lab
astro	241	Telescope Workshop
astro	329	Radio Astronomy Lab

Sorting & Truncating

By default, with a simple table expression such as /school, all rows are returned in the order of the primary key columns. To override the sort order, you can use sort() function:

◥
/school.sort(name)

code	name	campus
edu	College of Education	old
ph	Public Honorariums
art	School of Art & Design	old
la	School of Arts and Humanities	old

Sort direction can be specified explicitly using + for ascending and - for descending order. Also, you can sort by multiple columns. The following example sorts courses in ascending order by department and then in descending order by number of credits:

◥
/course.sort(department_code+, credits-)

department_code	no	title	credits	description
acc	620	Accounting Internship	6	Supervised internship in a business or nonprofit organization on an accounting position.
acc	315	Financial Accounting	5	Integration of the conceptual and computational aspects of asset, liability and stockholders equity accounting.

When sorting by a selected output column, you could use a shortcut syntax which combines column selection and sorting:

◥
/course{department_code+, no, credits-, title}

department_code	no	credits	title
acc	620	6	Accounting Internship
acc	315	5	Financial Accounting
acc	511	5	Audit
acc	200	3	Introduction to Accounting

To list a range of rows, the limit() function takes one or two arguments. The first argument is the number of rows to return, the optional second argument is the starting offset. The next example returns 5 records from the program table, skipping first 10 rows:

◥
/program.limit(5,10)

school_code	code	title	degree	part_of_code
edu	gedu	M.S. in Education	ms
edu	glited	Master of Arts in Literacy Education	ma
edu	gtch	Master of Arts in Teaching	ma
edu	psci	Certificate in Science Teaching	ct
edu	umath	Bachelor of Arts in Math Education	ba

Formatting Output

By default, HTSQL tries to guess the desired output format depending upon the browser or the tool used to make the request. This can be overridden with a format decorator, such as /:json. For example, results in JSON format can be requested as follows:

◥
/school/:json

{
  "school": [
    {
      "code": "art",
      "name": "School of Art & Design",
      "campus": "old"
    },
    {
      "code": "bus",
      "name": "School of Business",
      "campus": "south"
    },
    {
      "code": "edu",
      "name": "College of Education",
      "campus": "old"
    },
    {
      "code": "eng",
      "name": "School of Engineering",
      "campus": "north"
    },
    {
      "code": "la",
      "name": "School of Arts and Humanities",
      "campus": "old"
    },
    {
      "code": "mus",
      "name": "School of Music & Dance",
      "campus": "south"
    },
    {
      "code": "ns",
      "name": "School of Natural Sciences",
      "campus": "old"
    },
    {
      "code": "ph",
      "name": "Public Honorariums"
    },
    {
      "code": "sc",
      "name": "School of Continuing Studies"
    }
  ]
}

Other formats include /:txt for plain-text formatting, /:html for display in web browsers, and /:csv for data exchange.

Putting it Together

HTSQL is a composable language where individual query fragments can be combined into more complex expressions. For example, a selection on the course table such as /course{department, no, title} and a filter on the course table, /course?credits<3 can be combined in either of the following two forms:

◥
/course{department_code, no, title}?credits<3

department_code	no	title
acc	100	Practical Bookkeeping
astro	106	General Astronomy I Lab
astro	211	General Astronomy II Lab

◥
/course?credits<3 {department_code, no, title}

department_code	no	title
acc	100	Practical Bookkeeping
astro	106	General Astronomy I Lab
astro	211	General Astronomy II Lab

Note that the order in which selection and filter operators are applied doesn’t affect the output. You could also use a functional form:

◥
/course.filter(credits<3).select(department_code, no, title)

For the following two equivalent examples, we combine 3 operators – sorting, truncating, and selection:

◥
/course.sort(credits-).limit(10){department_code, no, credits}

department_code	no	credits
be	415	8
acc	620	6
arthis	209	6

◥
/course{department_code, no, credits-}.limit(10)

department_code	no	credits
be	415	8
acc	620	6
arthis	209	6

The relative position of sort and limit matter, switching the positions will change the output:

◥
/course.limit(10).sort(credits-){department_code, no, credits}

department_code	no	credits
acc	315	5
acc	511	5
acc	200	3

The following example requests the top 5 departments from schools with 'art' in their name, sorted in descending order by the number of courses. The output columns include the corresponding school name, the name of the department itself, and the number of courses. The output format is “Comma-Separated Values” suitable for consumption by spreadsheet or statistical analysis packages:

◥
/department{school.name, name, count(course)-}
           .filter(school.name~'art').limit(5)/:csv

name,name,count(course)
School of Arts and Humanities,English,21
School of Arts and Humanities,Foreign Languages,21
School of Arts and Humanities,Art History,20
School of Arts and Humanities,Political Science,19
School of Art & Design,Studio Art,19

HTSQL requests are powerful without being complex. They are easy to read and modify. They adapt to changes in the database. These qualities increase the usability of databases by all types of users and reduce the likelihood of costly errors.

Relating and Aggregating Data

HTSQL distinguishes between singular and plural relationships to simplify query construction. By a singular relationship we mean for every record in one table, there is at most one record in a linked table; by plural we mean there is perhaps more than one correlated record. To select a plural expression in a result set, an aggregate function, such as sum, count, or exists must be used. In this way, what would be many values are converted into a single data cell and integrated into a coherent result set.

By requiring aggregates for plural expressions, HTSQL reduces query construction time and reduces errors. When a query starts with a table, rows returned are directly correlated to records in this table. Since cross products or projections cannot be created accidentally, the combined result set is always consistent and understandable.

Basic Linking

One-to-many relationships are the primary building block of relational structures. In our schema, each course is offered by a department with a mandatory foreign key. For each course, there is exactly one corresponding department. In this case, the relationship is singular in one direction and plural in the other.

If each row in your result set represents a course, it is easy to get correlated information for each course’s department:

◥
/course{department.name, title}

name	title
Accounting	Practical Bookkeeping
Accounting	Introduction to Accounting
Accounting	Accounting Information Systems

It’s possible to join up a hierarchy in this way, but not down. If each row in your result set is a department, then it is an error to request course‘s credits since there could be many courses in a given department:

◥
/department{name, course.credits}

Expected a singular expression
While translating:
    /department{name, course.credits}
                             ^^^^^^^

In cases like this, an aggregate function, such as max is needed to convert a plural expression into a singular value. The following example shows the maximum course credits by department:

◥
/department{name, max(course.credits)}

name	max(course.credits)
Accounting	6
Art History	6
Astronomy	5

Conversely, you cannot use aggregates with singular expressions. For example, since school is singular relative to department, it is an error to count them:

◥
/department{name, count(school)}

Expected a plural operand
While translating:
    /department{name, count(school)}
                      ^^^^^^^^^^^^^

For single row or scalar expressions, an aggregate is always needed when referencing a table. For example, the query below returns maximum number of course credits across all departments:

◥
/max(course.credits)

8

Aggregate Expressions

Since school table has a plural (one to many) relationship with program and department, we can count them:

◥
/school{name, count(program), count(department)}

name	count(program)	count(department)
School of Art & Design	3	1
School of Business	6	3
College of Education	7	2
School of Engineering	8	4

Filters may be used within an aggregate expression. For example, the following returns the number of courses, by department, that are at the 400 level or above:

◥
/department{name, count(course?no>=400)}

name	count(course?no>=400)
Accounting	7
Art History	9
Astronomy	5
Bioengineering	3

It’s possible to nest aggregate expressions. This request returns the average number of courses each department offers:

◥
/school{name, avg(department.count(course))}

name	avg(department.count(course))
School of Art & Design	19.0
School of Business	14.6666666667
College of Education	17.5

Filters and nested aggregates can be combined. Here we count, for each school, departments offering 4 or more credits:

◥
/school{name, count(department?exists(course?credits>3))}

name	count(department?exists(course?credits>3))
School of Art & Design	1
School of Business	3
College of Education	1

Filtering can be done on one column, with aggregation on another. This example shows average credits from only high-level courses:

◥
/department{name, avg((course?no>400).credits)}

name	avg((course?no>400).credits)
Accounting	3.71428571429
Art History	3.55555555556
Astronomy	2.8
Bioengineering	4.33333333333

Numerical aggregates are supported. These requests compute some useful course.credit statistics:

◥
/department{code, min(course.credits), max(course.credits)}

code	min(course.credits)	max(course.credits)
acc	2	6
arthis	3	6
astro	1	5
be	2	8

◥
/department{code, sum(course.credits), avg(course.credits)}

code	sum(course.credits)	avg(course.credits)
acc	42	3.5
arthis	70	3.5
astro	66	3.0
be	55	3.23529411765

The every aggregate tests that a predicate is true for every row in the correlated set. This example returns department records that either lack correlated course records or where every one of those course records have exactly 3 credits:

◥
/department{name, avg(course.credits)} ?every(course.credits=3)

name	avg(course.credits)
Bursar’s Office
Career Development
Educational Policy	3.0

Arbitrary Linking

The unlink operator (@) permits arbitrary, non-relative links; it relates the current entity with all other records of another table.

◥
/school?count(department)>avg(@school.count(department))

code	name	campus
bus	School of Business	south
eng	School of Engineering	north
la	School of Arts and Humanities	old

The query above returns schools that have above average number of departments. This could also be written with the link function fork() which generates the current graph node to itself:

◥
/school?count(department)>avg(fork().count(department))

code	name	campus
bus	School of Business	south
eng	School of Engineering	north
la	School of Arts and Humanities	old

Compositional Navigation

Suppose you have an HTSQL query that returns the school of engineering.

◥
/school.filter(code='eng')

Now you’d like to return departments associated with this school. This could be written as:

◥
/department?school.code='eng'

code	name	school_code
be	Bioengineering	eng
comp	Computer Science	eng
ee	Electrical Engineering	eng
me	Mechanical Engineering	eng

However, if you want to re-use the existing (and working!) query fragment, school.filter(code='eng'), you could write:

◥
/school.filter(code='eng').department

code	name	school_code
be	Bioengineering	eng
comp	Computer Science	eng
ee	Electrical Engineering	eng
me	Mechanical Engineering	eng

Continuing this chain, you may choose the Department of Electrical Engineering and then list associated courses.

◥
/school.filter(code='eng')
.department.filter(code='ee')
.course

department_code	no	title	credits	description
ee	107	Exploration of Electrical Engineering	4	Exploration of electrical engineering through several hands-on activities that cover a broad spectrum of applications and fundamental concepts.
ee	202	Engineering Electromagnetics	3	Static electric and magnetic fields; solutions to static field problems, electromagnetic waves, boundary conditions, engineering applications.
ee	220	Semiconductor Devices	3	Theory of semiconductor devices, principles of design and fabrication, p-n junctions, bipolar transistors, their structure, operation modes and application, MOS capacitors and MOSFETs.
ee	221	Semiconductor Devices Lab	2	Provides practical examination of semiconductor devices properties.

Drill-down navigation trims unrelated rows and preserves the order of prior links. Consider the following two queries.

◥
/department

code	name	school_code
acc	Accounting	bus
arthis	Art History	la
astro	Astronomy	ns
be	Bioengineering	eng

◥
/school.department

code	name	school_code
stdart	Studio Art	art
acc	Accounting	bus
econ	Economics	bus
mm	Management & Marketing	bus

Although the latter query also returns records from the department table, it differs from the former in two ways. First, it skips departments lacking an associated school. Second, it orders the result first by school code and then on department code.

Calculations & References

Calculated Attributes

Suppose that you’re returning schools along with the number of associated departments, and we want to list only schools with more than 3 departments.

◥
/school{name, count(department)}? count(department)>3

name	count(department)
School of Engineering	4
School of Arts and Humanities	6
School of Music & Dance	4

In this query we have to repeat the expression count(department) twice; once to select the value for output, and the other as part of filter criteria. It is possible to avoid this duplication by defining a calculated attribute num_dept.

◥
/school.define(num_dept:=count(department))
  {name, num_dept}? num_dept>3

As syntax sugar, you could combine definition and selection.

◥
/school{name, num_dept:=count(department)}? num_dept>3

All three of these examples return the same result.

Calculated Links

In the prior example num_dept was a scalar value with respect to each school. It’s possible to define links as well. Suppose we’d like to calculate a set of statistics by department on 200 level courses typically taken by sophomores.

◥
/department{name, count(course?no>=200&no<300),
                  max((course?no>=200&no<300).credits),
                  min((course?no>=200&no<300).credits),
                  avg((course?no>=200&no<300).credits)}

name	count(course?no>=200&no<300)	max((course?no>=200&no<300).credits)	min((course?no>=200&no<300).credits)	avg((course?no>=200&no<300).credits)
Accounting	2	3	3	3.0
Art History	5	6	3	3.8
Astronomy	6	5	1	3.0

Here the link expression (course?no>=200&no<300) is duplicated. We can define a sophomore link to these courses as follows.

◥
/department.define(sophomore := course?no>=200&no<300)
           {name, count(sophomore),
                  max(sophomore.credits),
                  min(sophomore.credits),
                  avg(sophomore.credits)}

For readability, it is helpful to put definitions at the end of an expression where it is used. In the following example the usage of sophomore precedes its definition.

◥
/department{name,
             {count(sophomore),
              max(sophomore.credits),
              min(sophomore.credits),
              avg(sophomore.credits)
             } :where(sophomore := course?no>=200&no<300)}

In this example we use infix notation to call the where() function. Generally, any function call f(x,y) could be written x :f y.

Parameterized Calculations

Suppose we want to expand the previous example, by calculating the same set of statistics over 4 sets of courses: 100’s, 200’s, 300’s and 400’s.

◥
/department.define(freshman := course?no>=100&no<200,
                   sophomore := course?no>=200&no<300,
                   junior := course?no>=300&no<400,
                   senior := course?no>=400&no<500)
           {name, count(freshman),
                  max(freshman.credits),
                  min(freshman.credits),
                  avg(freshman.credits),
                  count(sophomore),
                  max(sophomore.credits),
                  min(sophomore.credits),
                  avg(sophomore.credits),
                  count(junior),
                  max(junior.credits),
                  min(junior.credits),
                  avg(junior.credits),
                  count(senior),
                  max(senior.credits),
                  min(senior.credits),
                  avg(senior.credits)}

name	count(freshman)	max(freshman.credits)	min(freshman.credits)	avg(freshman.credits)	count(sophomore)	max(sophomore.credits)	min(sophomore.credits)	avg(sophomore.credits)	count(junior)	max(junior.credits)	min(junior.credits)	avg(junior.credits)	count(senior)	max(senior.credits)	min(senior.credits)	avg(senior.credits)
Accounting	1	2	2	2.0	2	3	3	3.0	2	5	3	4.0	3	3	3	3.0
Art History	2	4	3	3.5	5	6	3	3.8	4	3	3	3.0	3	5	3	3.66666666667
Astronomy	5	5	2	3.2	6	5	1	3.0	6	4	2	3.0	5	4	2	2.8

In the above examples, we repeat the same group of aggregates four times, but each time with different set of courses. We could write this more concisely defining a calculation with a parameter.

◥
/department.define(freshman := course?no>=100&no<200,
                   sophomore := course?no>=200&no<300,
                   junior := course?no>=300&no<400,
                   senior := course?no>=400&no<500,
                   stats(set) := {count(set),
                                  max(set.credits),
                                  min(set.credits),
                                  avg(set.credits)})
           {name, stats(freshman),
                  stats(sophomore),
                  stats(junior),
                  stats(senior)}

Here the parameter set is bound to a subset of courses for each grade level. The calculation returns a set of columns that appear in the output.

Argument References

Instead of defining four different subsets of courses, we may want to define a parameterized calculation which takes a the course level and produces courses of this level. Naively, we could write:

◥
/department.define(course(level) := course?no>=level*100
                                          &no<(level+1)*100)
           {name, count(course(1)),
                  count(course(2)),
                  count(course(3)),
                  count(course(4))}

Found unknown attribute:
    course.level
While translating:
    /department.define(course(level) := course?no>=level*100
                                                   ^^^^^

Here we have a problem with the definition of course(level). In the body of the calculation, course introduces a new naming scope with attributes from the course table, such as the course no. Names from the previous scope, such as level, are not available. To overcome this deliberate limitation, we mark level with a dollar sign to indicate that it can be referenced from nested scopes.

◥
/department.define(course($level) := course?no>=$level*100
                                           &no<($level+1)*100)
           {name, count(course(1)),
                  count(course(2)),
                  count(course(3)),
                  count(course(4))}

name	count(course(1))	count(course(2))	count(course(3))	count(course(4))
Accounting	1	2	2	3
Art History	2	5	4	3
Astronomy	5	6	6	5

Using this technique, we could rewrite the last example from the previous section as:

◥
/department.define(
              stats($level) := {count(set),
                                max(set.credits),
                                min(set.credits),
                                avg(set.credits)
                                } :where set :=
                                 course?no>=$level*100
                                       &no<($level+1)*100)
           {name, stats(1),
                  stats(2),
                  stats(3),
                  stats(4)}

Defined References

References are not limited to parameters of calculations, they could be defined separately. In the following example $avg_credits defines the average number of credits per course. This reference is then used to return courses with more credits than average.

◥
/define($avg_credits := avg(course.credits))
.course?credits>$avg_credits

department_code	no	title	credits	description
acc	315	Financial Accounting	5	Integration of the conceptual and computational aspects of asset, liability and stockholders equity accounting.
acc	511	Audit	5	This course considers legal, procedural and ethical aspects of audit in accounting.
acc	620	Accounting Internship	6	Supervised internship in a business or nonprofit organization on an accounting position.

This same request can be written using where.

◥
/course?credits>$avg_credits
:where $avg_credits := avg(course.credits)

Suppose that we’d like to return courses that have more than average credits for their given department. We could write this as follows.

◥
/department.define($avg_credits:=avg(course.credits))
.course?credits>$avg_credits

department_code	no	title	credits	description
acc	315	Financial Accounting	5	Integration of the conceptual and computational aspects of asset, liability and stockholders equity accounting.
acc	511	Audit	5	This course considers legal, procedural and ethical aspects of audit in accounting.
acc	620	Accounting Internship	6	Supervised internship in a business or nonprofit organization on an accounting position.

Projections

So far we have shown queries that produce either scalar values or rows that correspond to records from a table. Occasionally, you may want to return all unique values of some expression. For example, to return distinct values of degree from the program table, write:

◥
/program^degree

degree
ba
bs
ct
ma
ms
pb
ph

In HTSQL, we call this a projection. This construct creates a virtual table of all unique records from a set of expressions.

Distinct Expressions

The following example lists values from the degree column for each record of the program table. Observe that you get duplicate rows corresponding to different records from the program table that share the same degree:

◥
/program{degree}

degree
pb
ba
ba
ma

To get unique rows from the example above, the distinct() function can be used:

◥
/distinct(program{degree})

degree
ba
bs
ct

Equivalently, this could be written using the ^ operator:

◥
/program^degree

degree
ba
bs
ct

Note that the projection operator skips rows containing a NULL. Hence, even though there are rows in the program without a degree, program^degree doesn’t contain a NULL.

You could use projections anywhere a table expression is permitted. For instance, to get the number of distinct degrees offered at the university, write:

◥
/count(program^degree)

7

Or, one could count distinct degrees by school:

◥
/school{name, count(program^degree)}

name	count(program^degree)
School of Art & Design	2
School of Business	4
College of Education	4

Projections aren’t limited to table attributes. Let’s assume course level as the first digit of the course number. Then, hence following expression returns distinct course levels:

◥
/course^trunc(no/100)

trunc(no/100)
1
2
3

If you wish to project by more than one expression, use a selector {} to group the expressions. In this example we return distinct combinations of course level and credits.

◥
/course^{trunc(no/100), credits}

trunc(no/100)	credits
1	2
1	3
1	4
1	5

Just as tables are sorted by default using the table’s primary key, projected expressions are also sorted using the distinct columns.

Working with Projections

Each projection is a virtual table with its own attributes and links to other tables. For instance, program^degree has two attributes, a column degree and a plural link program to records of the program table having that degree. In the query below, we return distinct degrees with the number of corresponding programs.

◥
/program^degree {degree, count(program)}

degree	count(program)
ba	10
bs	10
ct	4
ma	7

We may want to filter the base table before projecting. For example, listing only distinct degrees in the School of Engineering.

◥
/program?school_code='eng'
        ^degree

degree
bs
ms

Or, we could filter the expression after the projection has happened. In the next query we return only degrees having more than 5 corresponding programs.

◥
/program^degree
        ?count(program)>5

degree
ba
bs
ma
ms

Usually HTSQL automatically assigns names to projected columns, however, in cases where you have an expression, you have to name them. In the following example, we return distinct course level and credits combinations sorted in descending order by level and credits.

◥
/course^{level:=round(no/100),credits}{level-, credits-}

level	credits
8	3
7	4
7	3
7	0

Sometimes HTSQL cannot assign a name linking to the base of the projection. In these cases, you may use ^ to refer to it. Additionally * can be used to return all columns of the projection. Thus, the first example of this section could be written:

◥
/program^degree{*, count(^)}

degree	count(^)
ba	10
bs	10
ct	4
ma	7

Logical Expressions

A filter refines results by including or excluding data by specific criteria. This section reviews comparison operators, boolean expressions, and NULL handling.

Comparison Operators

The equality operator (=) is overloaded to support various types. For character strings, this depends upon the underlying database’s collation rules but typically is case-sensitive. For example, to return a department by name:

◥
/department?name='Economics'

code	name	school_code
econ	Economics	bus

If you’re not sure of the exact department name, use the case-insensitive contains operator (~). The example below returns all department records that contain the substring 'engineering':

◥
/department?name~'engineering'

code	name	school_code
be	Bioengineering	eng
ee	Electrical Engineering	eng
me	Mechanical Engineering	eng

Use the not-contains operator (!~) to exclude all courses with science in the name:

◥
/department?name!~'science'

To exclude a specific department, use the not-equals operator:

◥
/department?name!='Management & Marketing'

The equality (=) and inequality (!=) operators are straightforward when used with numbers:

◥
/department?count(course)!=0

code	name	school_code
acc	Accounting	bus
arthis	Art History	la

The in operator (={}) can be thought of as equality over a set. This example, we return departments that don’t belong to either the School of Engineering or the School of Natural Sciences:

◥
/department?school_code!={'eng','ns'}

Use the greater-than (>) operator to request departments with more than 20 offered courses:

◥
/department?count(course)>20

code	name	school_code
astro	Astronomy	ns
comp	Computer Science	eng
eng	English	la
lang	Foreign Languages	la

Use the greater-than-or-equal-to (>=) operator to request departments with 20 courses or more:

◥
/department?count(course)>=20

Using comparison operators with strings tells HTSQL to compare them alphabetically (once again, dependent upon database’s collation). For example, the greater-than (>) operator can be used to request departments whose code follows 'me' in the alphabet:

◥
/department?code>'me'

code	name	school_code
mm	Management & Marketing	bus
mth	Mathematics	ns
parent	Parents & Alumni
phys	Physics	ns

Boolean Expressions

HTSQL uses function notation for constants such as true(), false() and null(). For the text formatter, a NULL is shown as a blank, while the empty string is presented as a double-quoted pair:

◥
/{true(), false(), null(), ''}

true()	false()	null()	‘’
true	false

The is_null() function returns true() if it’s operand is null(). In our schema, non-academic department records with a NULL school_code can be listed:

◥
/department{code, name}?is_null(school_code)

code	name
bursar	Bursar’s Office
career	Career Development
parent	Parents & Alumni

The negation operator (!) is true() when it’s operand is false(). To skip non-academic department records:

◥
/department{code, name}?!is_null(school_code)

code	name
acc	Accounting
arthis	Art History
astro	Astronomy
be	Bioengineering

The conjunction (&) operator is true() only if both of its operands are true(). This example asks for courses in the 'Accounting' department having less than 3 credits:

◥
/course?department_code='acc'&credits<3

department_code	no	title	credits	description
acc	100	Practical Bookkeeping	2

The alternation (|) operator is true() if either of its operands is true(). For example, we could list courses having anomalous number of credits:

◥
/course?credits>5|credits<3

department_code	no	title	credits	description
acc	100	Practical Bookkeeping	2
acc	620	Accounting Internship	6	Supervised internship in a business or nonprofit organization on an accounting position.
arthis	209	Antique Art: Greece and Rome	6	Visual art of antique period with emphasis on Greek and Roman art.
astro	106	General Astronomy I Lab	2	Laboratory studies that complement the lecture course.

The precedence rules for boolean operators follow typical programming convention; negation binds more tightly than conjunction, which binds more tightly than alternation. Parenthesis can be used to override this default grouping rule or to better clarify intent. The next example returns courses that are in “Art History” or “Studio Art” departments that have more than three credits:

◥
/course?(department_code='arthis'|department_code='stdart')&credits>3

department_code	no	title	credits	description
arthis	102	History of Art Criticism I	4	An introductory survey course of world art from Prehistoric through late-Medieval art history.
arthis	209	Antique Art: Greece and Rome	6	Visual art of antique period with emphasis on Greek and Roman art.
arthis	210	Antique Art: The Middle East	4	Visual art of ancient world civilizations: Egypt, Mesopotamia, Persia.
arthis	476	Islamic Art	5	History of Islamic visual arts and their religious value.

Without the parenthesis, the expression above would show all courses from 'arthis' regardless of credits:

◥
/course?department_code='arthis'|department_code='stdart'&credits>3

department_code	no	title	credits	description
arthis	102	History of Art Criticism I	4	An introductory survey course of world art from Prehistoric through late-Medieval art history.
arthis	103	History of Art Criticism II	3	An introductory survey course of world art from 15th century through the present.
arthis	204	North American Native Art	3	Visual art of North American natives from prehistoric times to the present day.

When a non-boolean is used in a logical expression, it is implicitly cast as a boolean. As part of this cast, tri-value logic is flattened, null() is converted into false(). For strings, the empty string ('') is also treated as false(). This conversion rule shortens URLs and makes them more readable.

For example, this query returns only course records having a description:

◥
/course?description

The predicate ?description is treated as a short-hand for ?(!is_null(description)&description!=''). The negated variant of this shortcut is more illustrative:

◥
/course{department_code,no,description}? !description

department_code	no	description
acc	100
tched	630

Types and Functions

HTSQL supports boolean, date, numeric, and string data types, as well as variants. The pluggable type system can be used to augment the core types provided.

Working with NULLs

HTSQL provides a rich function set for handling NULL expressions; however, careful attention must be paid. For starters, the standard equality operator (=) is null-regular, that is, if either operand is null() the result is null(). The following request always returns 0 rows:

◥
/department?school_code=null()

code	name	school_code

While you wouldn’t directly write that query, it could be the final result after parameter substitution for a templatized query such as /department?school=$var. For cases like this, use total equality operator (==) which treats NULL values as equivalent:

◥
/department?school_code==null()

code	name	school_code
bursar	Bursar’s Office
career	Career Development
parent	Parents & Alumni

The !== operator lists distinct values, including records with a NULL for the field tested:

◥
/department?school_code!=='art'

code	name	school_code
acc	Accounting	bus
arthis	Art History	la
astro	Astronomy	ns
be	Bioengineering	eng
bursar	Bursar’s Office
